AVIATION COMPONENTS

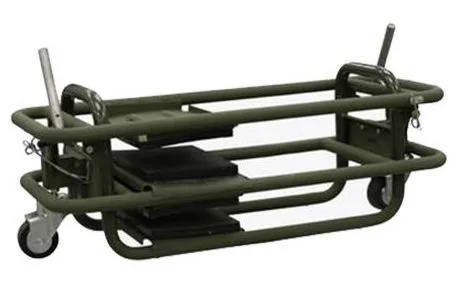

BLADE RACK
A blade rack is the holding structure that encompasses the tip and end of the main rotor blades for the AH64A Apache Aircraft during transportation and storage.

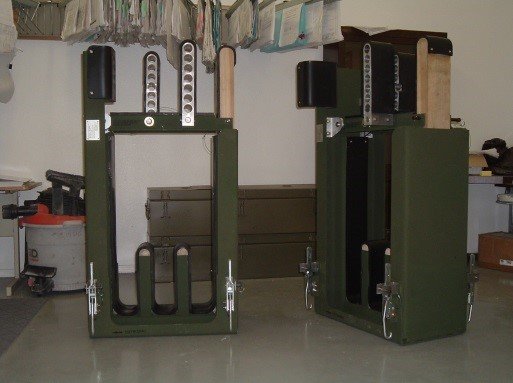

ROTARY WING RACK
A rotary wing rack is a holding structure that contains the rotor blades for the CH-47D aircraft during transportation and storage. Two rotary wing rack units comprise one set, making up a transportation adapter unit. The completed assembly includes aluminum, wood, rubber and fabric components that are welded, bolted, bonded and/or sewn.

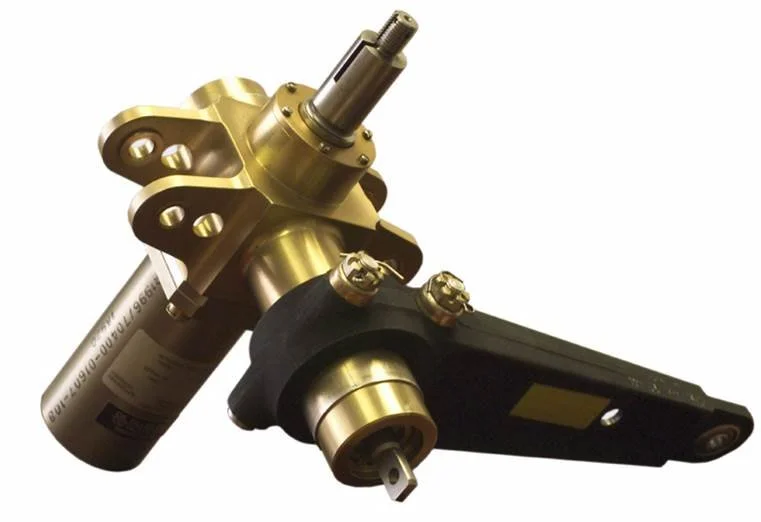

YAW PEDAL
A YAW pedal is a flight control functional part in H60 series of helicopters. YAW pedals control the direction the nose of the aircraft points. A YAW adjuster assembly consists of two major subassemblies: a raw aluminum forging and a hydraulic/mechanical adjuster. During the life of the YAW pedal contract, CDMG’s CNC machines were required to perform extreme, close-tolerance finish machining operations on the arm forging. The YAW pedal required a quality assurance inspection and testing, including a bearing rotational force test. Level A MIL-Spec packaging and marking were required for shipment.
